TDG50 Tread Depth Gauge
Part Number: TDG50
From the OE assembly plant to the local tire shop, Bartec USA is your TPMS one stop shop.

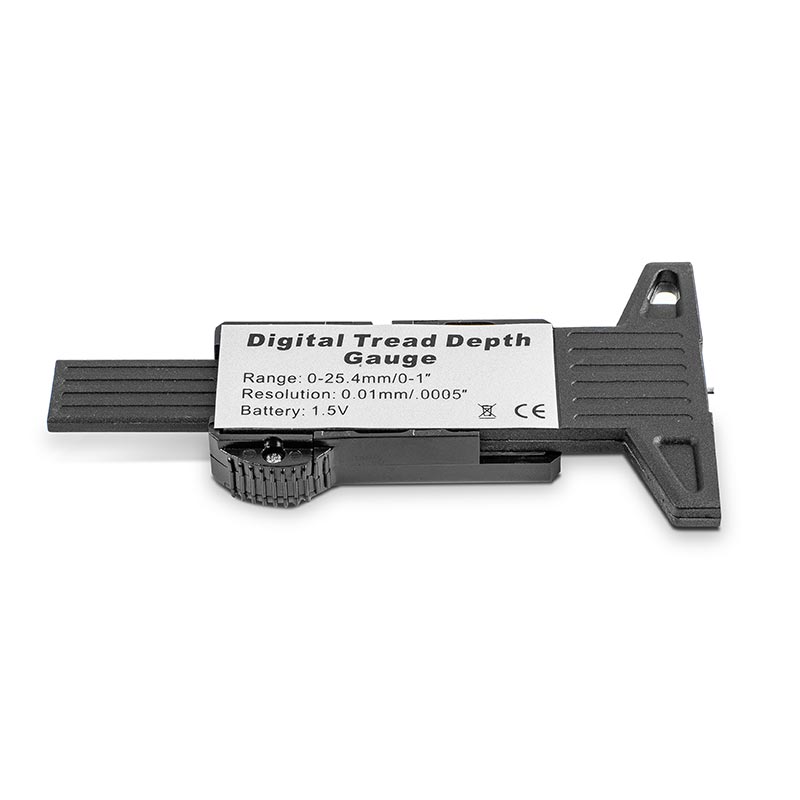

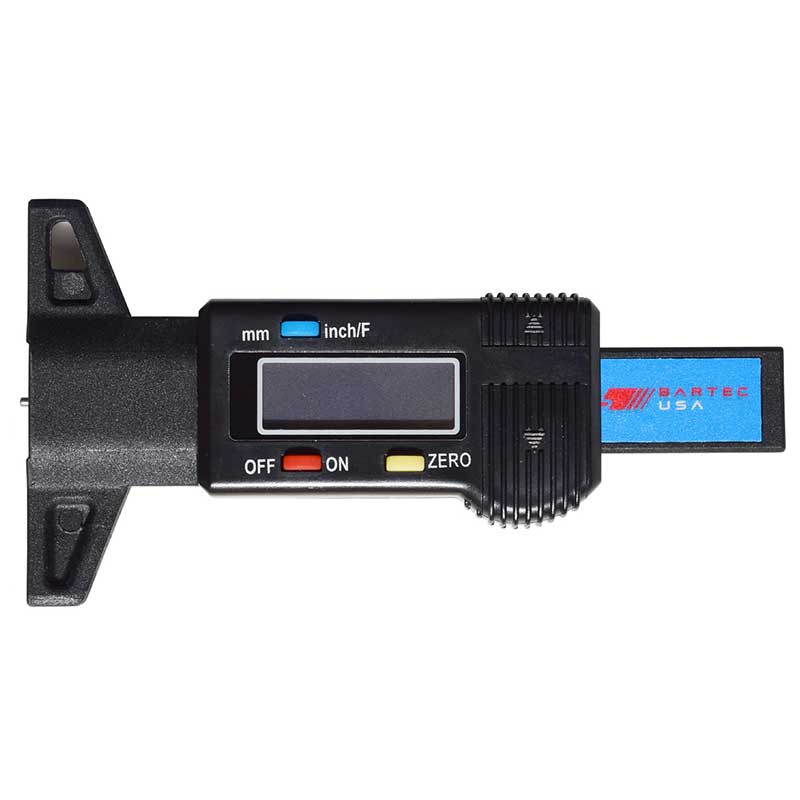

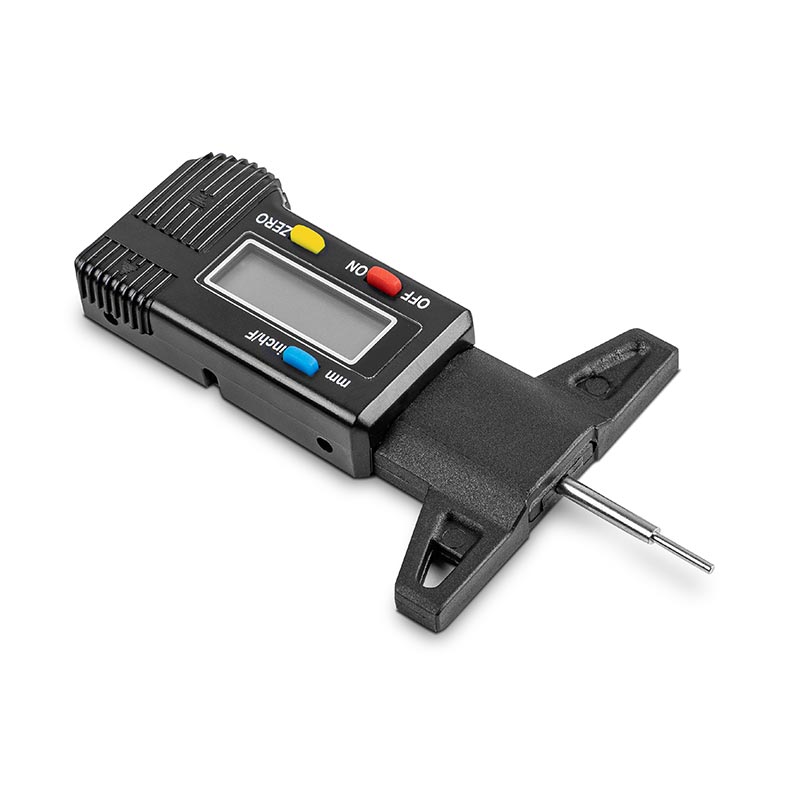

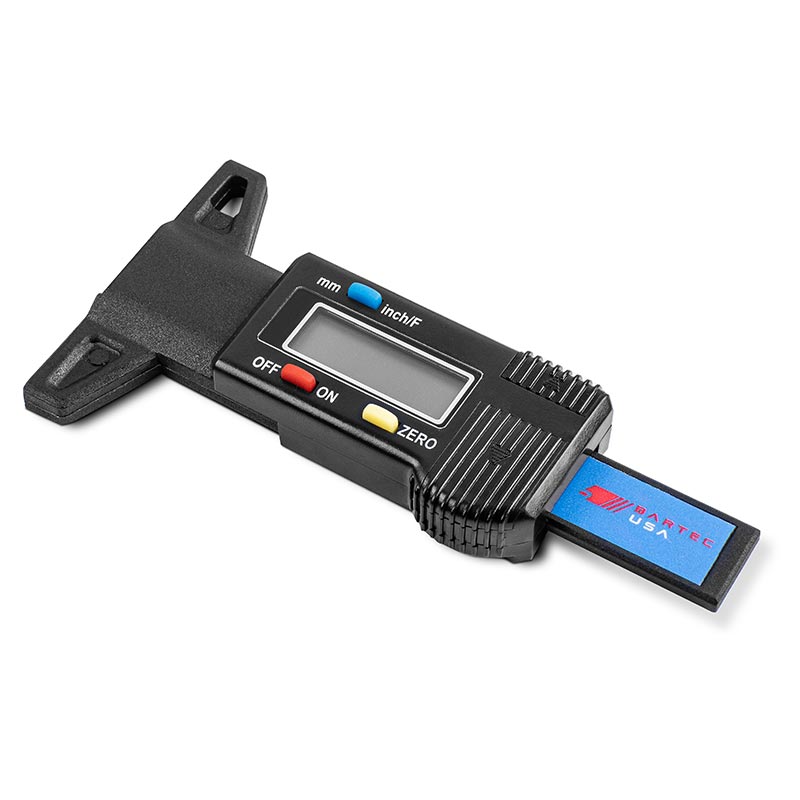

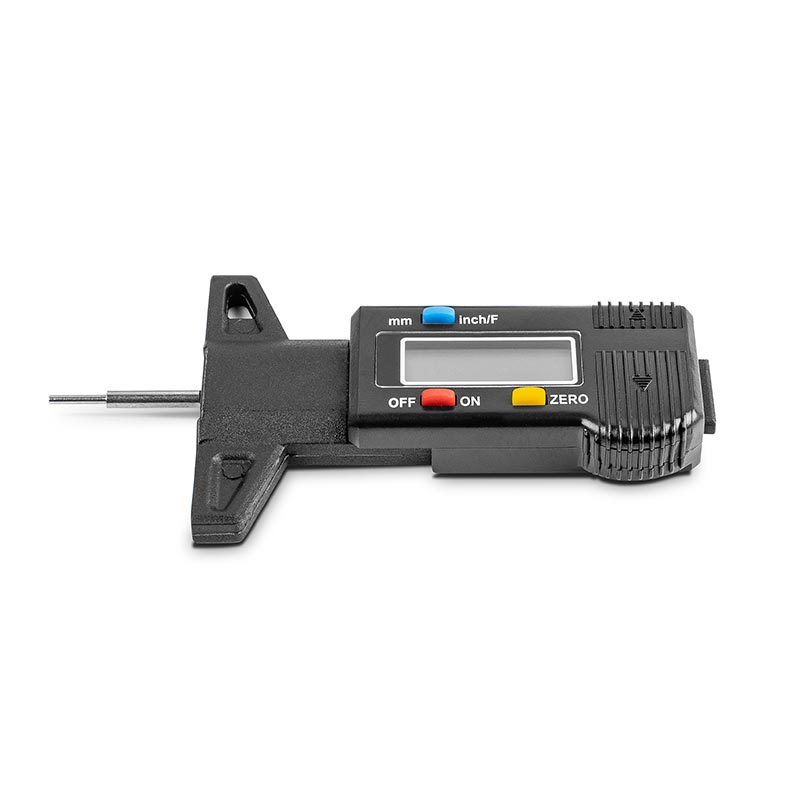

The TDG50 Digital Tread Depth Gauge is our entry level tire shop tool. Features include a large LCD display with a range of 0-1 1/32 inches, zero reset at any position, units in mm or 32nds with a manual "Off" and "On".
The tool will require a 389/390 watch/coin battery (not included) and comes with operating specifications including a digital tread depth gauge range of measurement 0-25mm, a resolution of .01mm and a working temperature range of 0-40°C. Insert battery (positive side up). Switch on and select units. Place the base of the tool on a flat surface and press the depth bar until it stops.
TDG50 Tread Depth Gauge Features
- Large LCD Display
- Range 0 -1 1/32 inches
- Zero Reset at Any Position
- Units in mm or 32nd's
- Manual Off and On
Kit Contents
- 389/390 Watch/Coin Battery required (not included)
- Range of measurement 0-25mm
- Resolution: .01mm
- Working temperature: 0-40°C
Operating Specifications
Digital Tread Depth Gauge

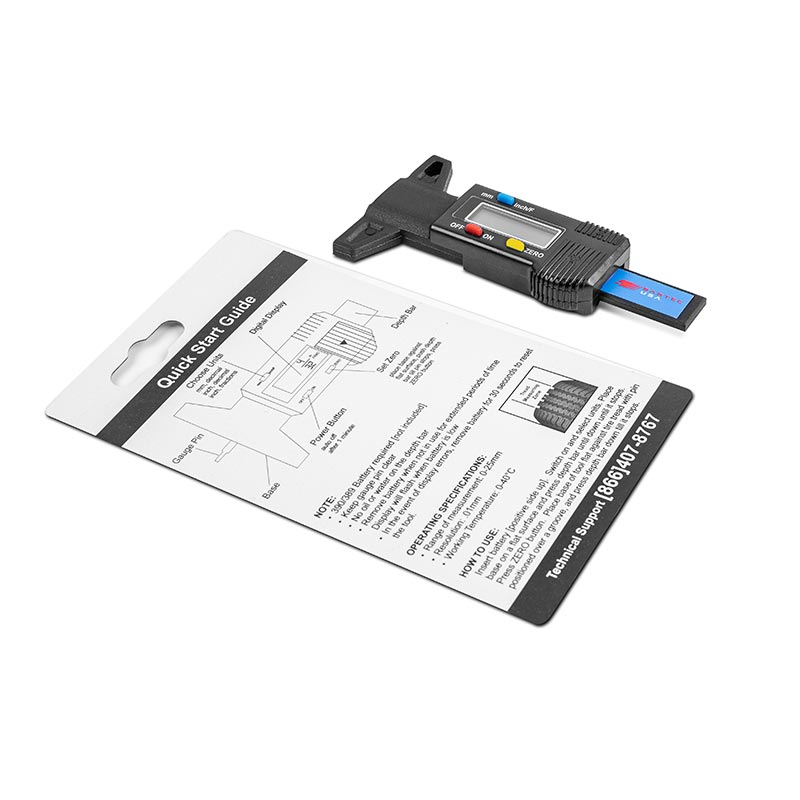

How to Use
Insert battery (positive side up). Switch on and select units. Place base on a flat surface and press depth bar until it stops. Pres ZERO button. Place base of tool against tire tread with pin positioned over a groove and press depth bar until it stops.
Don't Forget
To get the most from your new TPMS tool, register your tool, download the TPMS Desktop app and update your TPMS tool.
